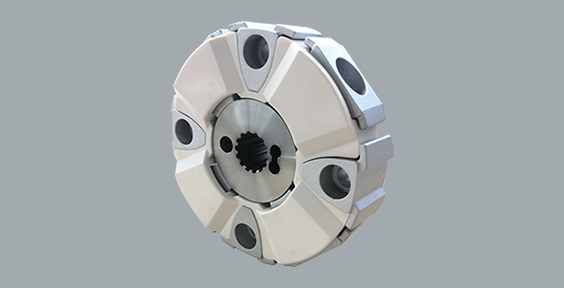

The torsional stiffness of RF-H is between RF-A torsional highlyflexible coupling and RF-X rigid torsional stiffness, which is a better option.Mainly applied in connection of inner combustion engine and hydraulic pump.

Hydraulic pump usually has a small moment of inertia, it’s better toapply torsional rigid coupling and diesel engine connection, so that thecritical rotation speed is higher than the diesel engine running speed. Thisallows the drive to operate below the critical speed, to avoid dangerousresonance caused by running near the critical speed.

This kind of coupling is usually installed in the housing betweenthe diesel engine and the hydraulic pump or transfer box. Naturally, the temperaturein the housing will be high. The RFH coupling is ideal for this application,even in a fully enclosed housing, because of its excellent high temperaturestability.

· Compact constructure High performance.

· High torsional stiffness, can adjust smallmisalignment and absorb vibration.

· Applied in high speed.

· Ambient temperature: -50℃-150℃.

· Oil resistant.

· Push-on installation.

· Axial force-free.

· Eliminate the maintenance.

· Low noise level

· 8-400 Size

· 100-4,000N.m Torque

· 85mm max. Boresize

· The elastomer is the main part of coupling, which is madein Hytrel brand thermal-plastic polyester with high strength and goodstability.

· 1 type, directly install in the flywheel includingcylindrical hub, elastomer, metal separator and bolt.

· 2 type, complete coupling including 1 type parts andflange hub.

· 3 type, installed in adapter plate, which can beinstalled in any kinds of flywheel. Including 1 type parts and adapter plate.
· 4type, including forged adapter plate.

· Hub material is carbon steel, key slot connection,shrink-fit connection, flange connection and spline connection.

· Agricultural machinery   · Grader

· Asphalt paver                · Mining Machinery

· Boat                               · Road machinery

· Concrete pump              · Track machinery

· Crane                            · Roller

· Dump truck                    · Tractor

· Excavator                      · Vibration Machinery

· Forklift                           · Loader
