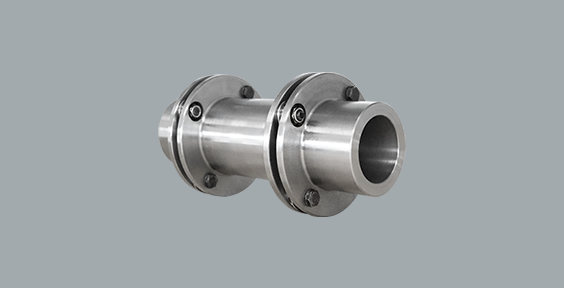

GL series membrane coupling isdesigned for low-medium speed and torque process pump and providing moreeconomical solution. For bigger torque or higher speed, please select G seriesmembrane couplings.

The constraint plate pack applied in GL Series membrane coupling, With bigger torque and less restorative force. 4-hole design plate is with more compensation capability. The standard two-joint structure can fulfil the axial, angular and radial compensation.

· Long life design

· Overload Protection

· Low-extra load

· Eliminates the need for lubrication and coupling maintenance

· Torsionally rigid without anybacklash

· 76-194 Size

· 60-3,000 N.m Torque

· 4,000RPM Max Speed

· 95mm

· Bore size: Max 95mm

· low-medium speed process pump

· Other equipment with less than 4000RPM speed.
