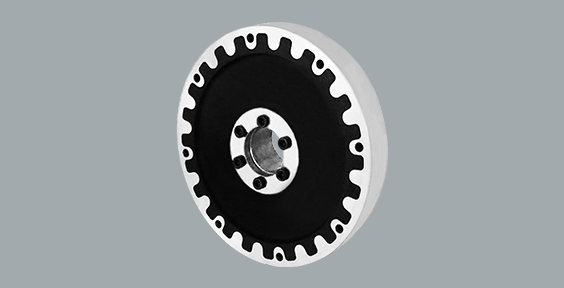

RMSeries Highly Flexible Couplings are designed for diesel engine drive, allowthe diesel motor to safely drive a small relative inertial load, to avoid thesympathetic damage in a wide speed range from idle speed to full speed and letthe critical speed of rotation far less than the idle speed. Also, the RMSeries Highly Flexible Couplings can reduce dynamic torque.

· Clockwise rotation and counter clockwise rotation

· Suitable for horizontal and vertical mounting positions or mounting atany required angle

· Axial push-on assembly

· 3 kinds of Shore hardness natural-synthetic rubber element versions withdifferent grades of torsional stiffness available for different applicationdemand, suitable ambient temperature -40℃ to +80℃.

· Silicon Rubber, suitable ambient temperature -40℃ to+120℃.

· 240-10,000 Size

· 250N.m-20,000N.m Torque

· SAE 6.5-24＂，Motor Flange: SAE 6.5-24'' per actual demand
· 200mm Hole size

· Outer flange: Aluminum

· Inner casing: Carbon steel

· Hub: Carbon steel

· Elastomer: Natural rubber, silicone rubber

· Mobile Air Compressor

· Mobile Pump

· Diesel Generator

· Engineering Machineries

· Field Operation Machineries

· Diesel locomotive

· Military Vehicles

· Small and middle type vessel
