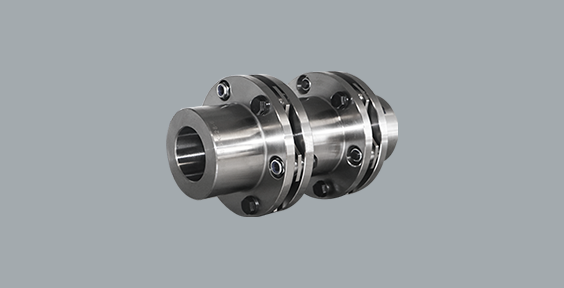

G-series membrane couplingsprovide the economic transmission solution for the general equipment. Theconstraint membrane is with bigger torque and less restorative force.

The 6-hole,8-hole and 10-hole design for G series membrane coupling canmeet different torque compensation requirement with different kinds structuraltype. Dynamic balance per request, also meet the API610 standard and API671standard per request.

· Long life design

· Overload Protection

· Low-extra load

· Eliminates the need for lubrication and coupling maintenance

· Torsionally rigid without any backlash

· 76-194 Size

· 60-3,000 N.m Torque

· 4,000RPM Max Speed

· 95mm

· Hole size: Max 95mm

· Centrifugal pump

· Centrifugal compressor

· Blower

· Cooler

· Turbine

· Other
